Chemical Dispense System

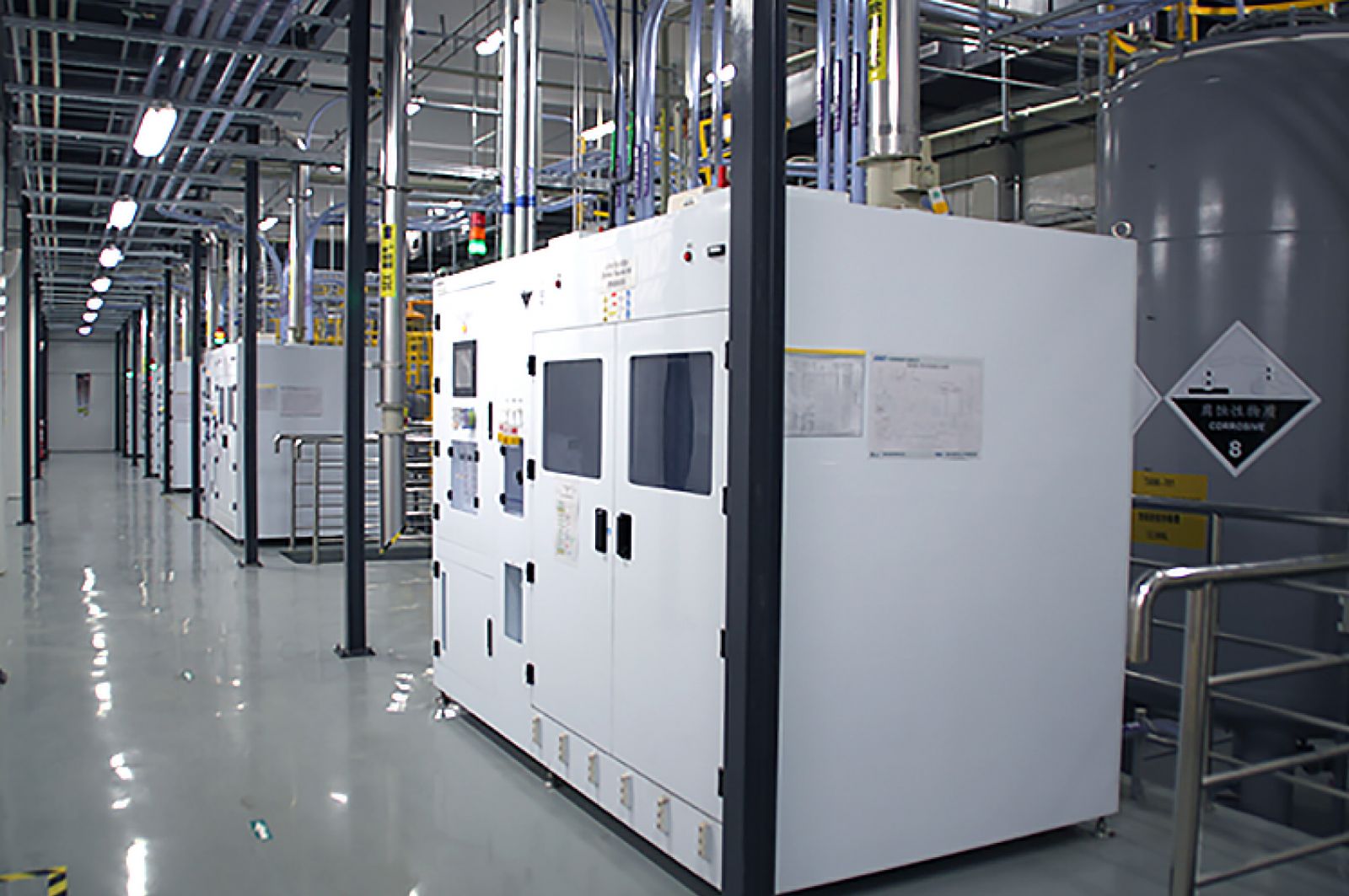

Product picture-1

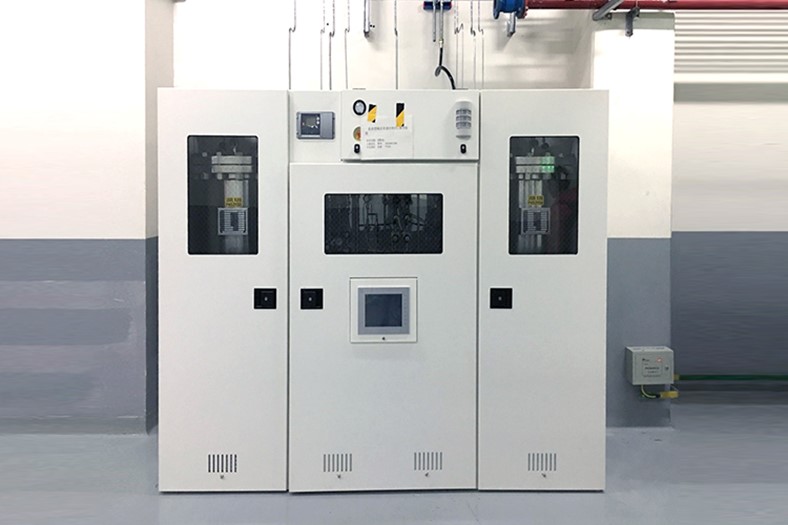

Product picture-2

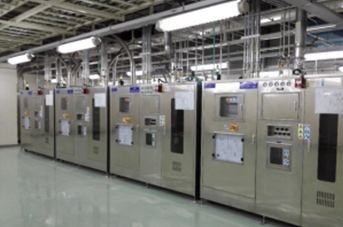

Product picture-3

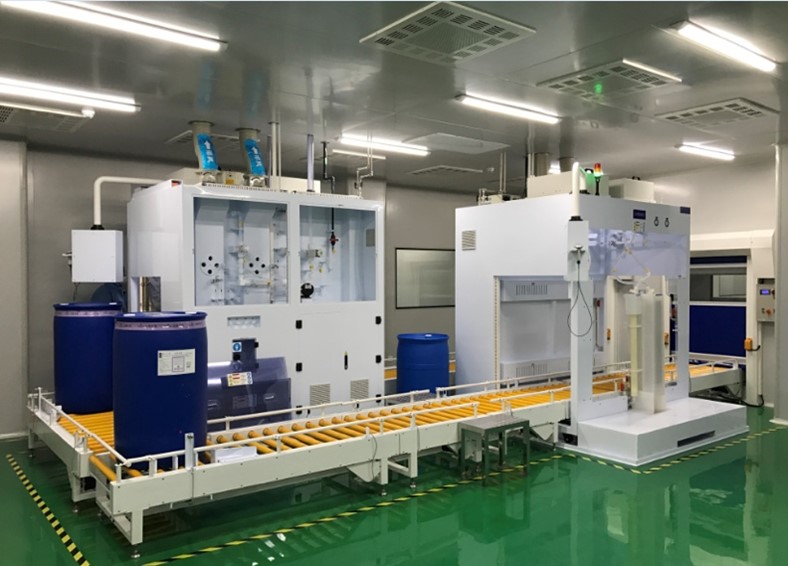

Product picture-4

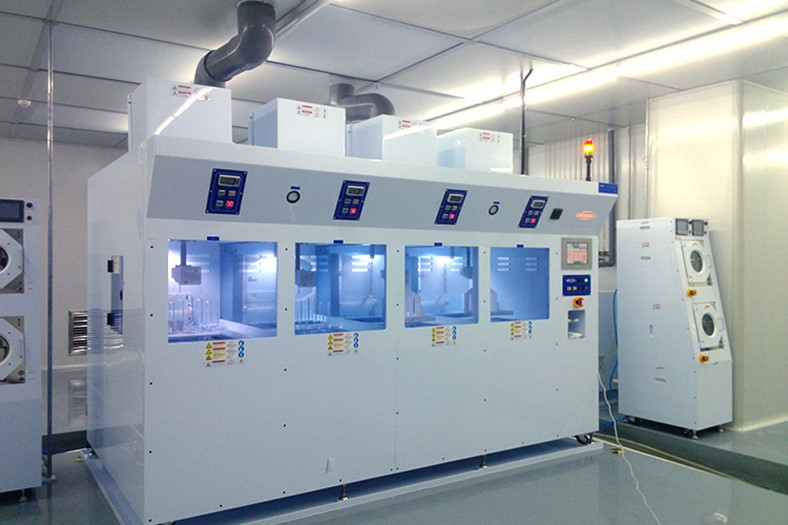

Product picture-5

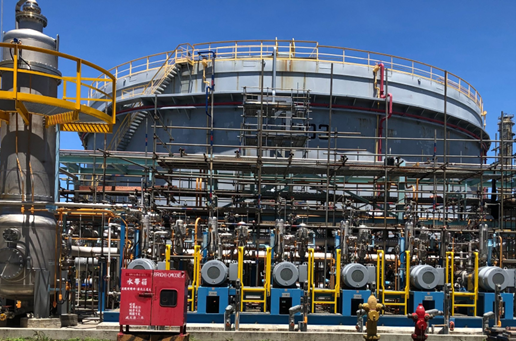

Product picture-6

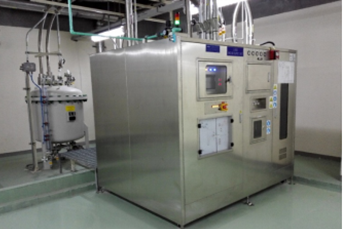

Product picture-7
▲Company Profile Video
1. Chemical classification:
- Acid chemicals
- Alkaline chemicals
- Organic solvent chemicals
2. Chemical system unit architecture:
- Storage tank: located in the factory area, used for temporary storage of chemicals, equipped with a level gauge, real-time notification of the staff on duty to replenish chemicals
- Supply equipment: set up in the factory area, used for chemical supply/transportation/dilution/purification
- Distribution valve box (VMB): located in the clean room, distribute chemicals to multiple production machines
- I/O Panel: located in the clean room, used as a communication interface between the production machine and the acid supply machine
- DCP (Main PLC Panel): located in the factory area, used as I/OPanel/for acid machine/SCADA signal exchange
- SCADA (Supervisory Control System): Set in the factory area, monitor the operation status of each I/OPanel/acid supply machine/VMB, and send out real-time alarms and record the system status
- Piping system: For chemical transportation, it can be divided into PFA or SUS or PV according to the characteristics of chemicals
- UTILITY: Power/N2/CDA/UPW/EXH/Drain.. for the acid machine.
Get certified:
- TS
- Semi S2
- GB
